15-5PH Steel Forging Parts ASTM XM-12 UNS S15500 Machined
Description
15-5PH Steel Forging Parts ASTM XM-12 UNS S15500 Machined is a martensitic precipitation hardening stainless steel with good workability and strength, as well as excellent mechanical properties. 15-5PH Steel Forging Parts ASTM XM-12 UNS S15500 Machined is resistant to general corrosive environment. Its toughness, ductility, hardness and corrosion resistance are comparable with 304 stainless steel. 15-5PH has excellent transverse toughness and ductility; 15-5PH Steel Forging Parts ASTM XM-12 UNS S15500 Machined is highly malleable. Its processing properties are similar to those of other precipitation hardened stainless steels. Age hardening can be realized in one step through low temperature heat treatment. This material is used for parts that require high lateral strength and toughness.
All of 15-5PH Steel Forging Parts ASTM XM-12 UNS S15500 Machined conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
- Material:Metal, 15-5PH Steel Forging Parts ASTM XM-12 UNS S15500 Machined
- Shape:Steel Forging Parts
-

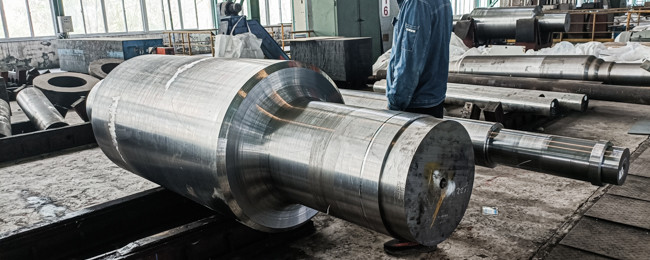

Forging piece: stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
-
Heavy/middle plate via hot rolled: T6 - 200mm X W10 - 1500mm X L1000-12000mm
- Length: Fixed length or random length or based on the customer's special requirement.
-
Round bar / Wire rod (Diameter): 5.5mm to 800mm
Products Details
15-5PH Steel Forging Parts ASTM XM-12 UNS S15500 Machined
| Chemical Composition (weight%): | C (％): ≤ 0.07
Si (％): ≤ 1.00
Mn (％): ≤ 1.00
P (％)≤: 0.040
S (％)≤: 0.030
Cr (％): 14.0 ~ 15.5
Ni (％): 3.50 ~ 5.50
Mo (％): -
Cu (％): 2.50 ~ 4.50
Nb+Ta (%): 0.15 ~ 0.45 |
Mechanical Properties Under
Final Heat Treatment: | Form: Bar, forge piece
Condition: H900
Tensile strength, σb/MPa: 1310
Yield strength, σ0.2/MPa: 1170
Elongation, δ (％): 10.0
Reduction of area, ψ (％): 35
Harndess: HRC: ≥ 40
Form: Bar, forge piece
Condition: H925
σb/MPa: 1170
σ0.2/MPa: 1070
δ (％): L-10.0
ψ (％): L-38.0
Hardness HRC: ≥ 38
Form: Bar, forge piece
Condition: H1025
σb/MPa: 1070
σ0.2/MPa: 1000
δ (％): 12.0
ψ (％): 45
Hardness HRC: ≥ 35
Form: Bar, forge piece
Condition: H1075
σb/MPa: 1000
σ0.2/MPa: 860
δ (％): 13.0
ψ (％): 45.0
Hardness HRC: ≥32
Form: Bar, forge piece
Condition: H1100
σb/MPa: 965
σ0.2/MPa: 795
δ(％): 14；10
ψ(％): 45；29
HRC: ≥31 |
Applications:
15-5PH Steel Forging Parts ASTM XM-12 UNS S15500 Machined used most often in the Marine gas turbine compressor sections, Hallow shafts, Paper mill equipment, Engine parts, Aircraft components, Gears, Fittings and fasteners, Nuclear reactor components, etc.
15-5PH Steel Forging Parts ASTM XM-12 UNS S15500 Machined
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of 15-5PH Steel Forging Parts ASTM XM-12 UNS S15500 Machined and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging, we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order as the start of our cooperation, we can accept smaller quantities at the first time. Of course, after the start, we will have further and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing, DHL/FedEx/UPS accounts can be used for sampling, and the courier fee is borne by you.
Packing method
Wooden Pallet BOX,Standard Seaworthy Package,based on the customer's special requirement,etc
