Brand Name : PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL
Model Number : X22CrMoV12-1, X22CrNiMoV12-1, 1.4923
Certification : SGS,TUV,BV,ISO,MTC
Place of Origin : China
MOQ : Negotiations
Price : Negotiations
Payment Terms : T/T
Supply Ability : 30000KGS/Month
Delivery Time : Ex-stock for delivery: 3-7 days Production lead time: 50-60days
Packaging Details : Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement
Product Name : X22CrMoV12-1 Stainless Steel Round Bar
Grades : X22CrMoV12-1, X22CrNiMoV12-1, 1.4923
Processing methods : Shot blasted,Ground,Peeled,Cold working,Machined,etc
Surface : Black,Bright,Rrough Turned,Grinding,Centreless Ground,etc
Profile : Round Bar,Flat Bar,Forging Parts,Sheets Plates,Forging Piece,etc
Price Term : Ex-work,FOB,CIF,CFR, DDU,etc
X22CrMoV12-1 Stainless Steel Round Bar X22CrNiMoV12-1 Bar 1.4923 Steel
Description
X22CrMoV12-1 Stainless Steel Round Bar X22CrNiMoV12-1 Bar 1.4923 Steel is martensitic stainless steel that is heat resistant. Due to the low chromium content in the chemical composition, the stainless steel grade shows limited resistance to corrosion.
All of X22CrMoV12-1 Stainless Steel Round Bar X22CrNiMoV12-1 Bar 1.4923 Steel conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
Round bar / Wire rod (Diameter): 5.5mm to 800mm
Square bar / Flat bar: 3mm to 800mm
Forging piece: stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
Heavy/middle plate via hot rolled: T6 - 200mm X W10 - 1500mm X L1000-12000mm
Sheet steel via cold rolled: T0.5 - 6mm X W6 - 1000mm X L1000 - 2000mm
Steel strip via cold rolled: T0.1 - 3mm X W5 - 200mm X L (or in coil form)
Products Details
X22CrMoV12-1 Stainless Steel Round Bar X22CrNiMoV12-1 Bar 1.4923 Steel
Chemical Composition (weight%): | |
C | 0.18 ~ 0.24 |
Cr | 11.0~12.5 |
Ni | 0.30~0.80 |
Mo | 0.80~1.20 |
Si | ≤ 0.50 |
Ti | - |
P | ≤ 0.025 |
S | ≤ 0.015 |
Mn | ≤ 2.00 |
Other | V 0.20 ~ 0.35 |
Mechanical Properties Under Final Heat Treatment: | |
Condition: Quenched and tempered | |
TS, σb/MPa | 800 ~ 950 |
YS, σ0.2≥/MPa | 600 |
EL, δ 5≥(%) | 14.0 |
Hardness HBW | - |
Hardness HRB (HRC) | - |
Applications:
X22CrMoV12-1 Stainless Steel Round Bar X22CrNiMoV12-1 Bar 1.4923 Steel used most often in the Aircraft construction, Petrochemical industries, Power industries.
Equivalent Grade
X22CrMoV12-1 X22CrNiMoV12-1 1.4923
X22CrMoV12-1 Stainless Steel Round Bar X22CrNiMoV12-1 Bar 1.4923 Steel
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of X22CrMoV12-1 Stainless Steel Round Bar X22CrNiMoV12-1 Bar 1.4923 Steel and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging, we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order as the start of our cooperation, we can accept smaller quantities at the first time. Of course, after the start, we will have further and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing, DHL/FedEx/UPS accounts can be used for sampling, and the courier fee is borne by you.
Packing method
Wooden Pallet BOX,Standard Seaworthy Package,based on the customer's special requirement,etc
![]() |

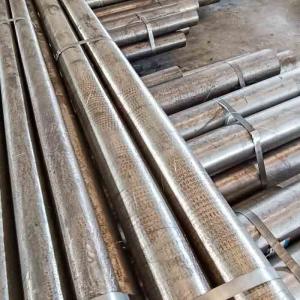

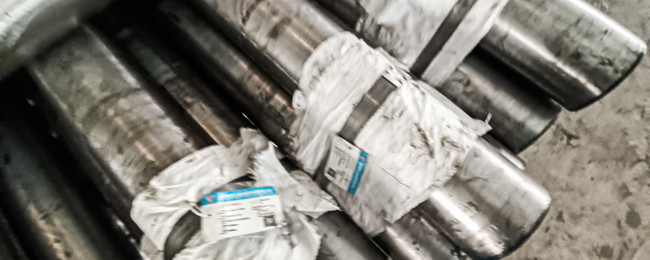

X22CrMoV12-1 Stainless Steel Round Bar X22CrNiMoV12-1 Bar 1.4923 Steel Images |
