X22CrMoV12-1 Structural Steel Round Bar Grinding Surface

Name: X22CrMoV121 Structural Steel Round Bar Grinding Surface
Brand: PANGANGGROUP,ANSTEEL,TISCO,BAOSTEEL
Price: 1 USD

China X22CrMoV12-1 Structural Steel Round Bar Grinding Surface wholesale

Brand Name : PANGANGGROUP,ANSTEEL,TISCO,BAOSTEEL

Model Number : X22CrMoV12-1, X22CrNiMoV12-1, 1.4923

Certification : SGS,TUV,BV,ISO,MTC

Place of Origin : China

MOQ : Negotiations

Price : Negotiations

Payment Terms : T/T

Supply Ability : 90000KGS/Month

Delivery Time : Ex-stock for delivery: 3-7 days Production lead time: 30-60 days

Packaging Details : Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement

Product name : X22CrMoV12-1 Structural Steel Round Bar

Grades : X22CrMoV12-1, X22CrNiMoV12-1, 1.4923

Processing methods : Ground,Peeled, Milled, Cold working, Machined, etc.

Heat treatment condition : quenched and tempered, etc.

Surface : Rrough Turned, Grinding, Centreless Ground, etc

Available Shapes : Round bar, Square bar, Flat bar, Length, Heavy, middle plate via hot rolled, Sheet steel via cold rolled, Steel strip via cold rolled, Forging piece,etc

Price Term : Ex-work, FOB, CIF, CFR, DDU etc.

Contact Now

X22CrMoV12-1 Structural Steel Round Bar

Description

X22CrMoV12-1 Structural Steel Round Bar Scale oxide resistance up to approximately 600°C. The corrosion resistance in natural environment is limited due to the relatively low chromium content.
All of X22CrMoV12-1 Structural Steel Round Bar conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.

Material:Metal,Structural Steel Round Bar, X22CrMoV12-1
Shape:Structural Steel Round Bar
Round bar / Wire rod (Diameter): 5.5mm to 800mm
Forging piece: stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
Heavy/middle plate via hot rolled: T6 - 200mm X W10 - 1500mm X L1000-12000mm
Sheet steel via cold rolled: T0.5 - 6mm X W6 - 1000mm X L1000 - 2000mm
Steel strip via cold rolled: T0.1 - 3mm X W5 - 200mm X L (or in coil form)
Length: Fixed length or random length or based on the customer's special requirement.

Products Details

X22CrMoV12-1 Structural Steel Round Bar

Chemical Composition (weight%):	Mechanical Properties Under Final Heat Treatment:
C: 0.18 Si: - Mn: ≤ 0.24 P: ≤ 0.5 S: ≤ 0.4 Cr: - Mo: ≤ 0.9 V: ≤ 0.3	Rm – Tensile strength (MPa) (+QT): 800-950 Rp0.2 0.2% proof strength (MPa) (+QT): 600 KV – Impact energy (J) (+QT): +20° A – Min. elongation at fracture (%) (+QT): 14 Z – Reduction in cross section on fracture (%) (+QT): 40 Brinell hardness (HBW) (+A): 302

X22CrMoV12-1 Structural Steel Round Bar Grinding Surface

Applications:

X22CrMoV12-1 Structural Steel Round Bar is steam resistant. It is mainly used in turbine construction, aerospace and for pressure and steam boilers.

X22CrMoV12-1 Structural Steel Round Bar Grinding Surface

FAQ

Q: How do you control the quality?

A: We have professional inspectors to analyze the chemical composition of raw materials and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.

Q: Do you accept customization?

A: Yes. If you have special requirements for products or packaging, we can make them for you.

Q: Can you accept trial orders?

A: Our MOQ is usually 1 ton. However, if you want to place an order as the start of our cooperation, we can accept smaller quantities at the first time. Of course, after the start, we will have further and longer cooperation.

Q: How do I get samples?

A: Free samples are available for your inspection and testing, DHL/FedEx/UPS accounts can be used for sampling, and the courier fee is borne by you.

X22CrMoV12-1 Structural Steel Round Bar Grinding Surface

Product Tags:

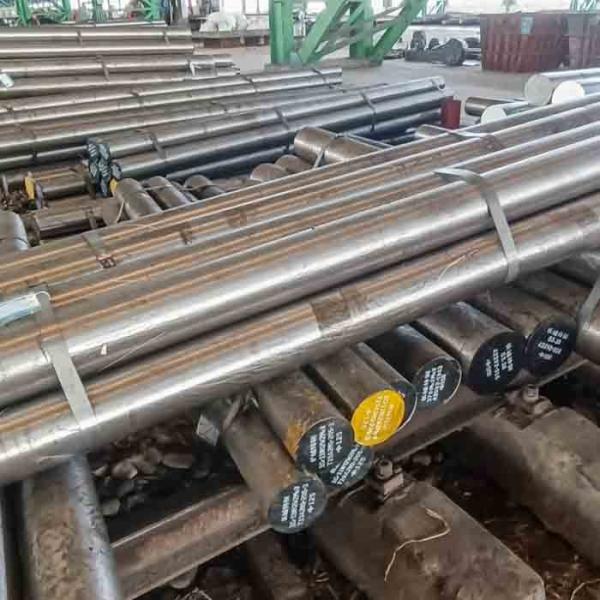

X22CrMoV12-1 Structural Steel Round Bar Grinding Surface Images
