XM-29 Austenitic STainless Steel UNS S24000 Stainless Steel Round Bar
Description
XM-29 UNS S24000 Stainless Steel Round Bar is an austenitic stainless steel formulated for primary forming into wrought products. Cited properties are appropriate for the annealed condition.
XM-29 Austenitic STainless Steel UNS S24000 Stainless Steel Round Bar has a moderately low base cost among wrought austenitic stainless steels. XM-29 Austenitic STainless Steel UNS S24000 Stainless Steel Round Bar has a moderately low embodied energy and a moderately high tensile strength.
All of XM-29 Austenitic STainless Steel UNS S24000 Stainless Steel Round Bar conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
- Material:Metal,Stainless Steel Round Bar, XM-29 UNS S24000
- Shape: Austenitic STainless Steel
- Round bar / Wire rod (Diameter): 5.5mm to 800mm
- Square bar / Flat bar: 3mm to 800mm
- Forging piece: stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
- Heavy/middle plate via hot rolled: T6 - 200mm X W10 - 1500mm X L1000-12000mm
- Sheet steel via cold rolled: T0.5 - 6mm X W6 - 1000mm X L1000 - 2000mm
- Steel strip via cold rolled: T0.1 - 3mm X W5 - 200mm X L (or in coil form)
- Length: Fixed length or random length or based on the customer's special requirement.
Products Details
| Chemical Composition (weight%): | Mechanical Properties Under Final Heat Treatment: |
C (％): ≤ 0.08
Si (％): ≤ 1.00
Mn (％): 11.5 ~ 14.5
P (％)≤: 0.060
S (％)≤: 0.030
Cr (％): 17.0 ~ 19.0
Ni (％): 2.25 ~ 3.75
Mo (％): -
N (％): 0.20～0.40 | Tensile strength, σb/≥ MPa: 689
Yield strength, σ0.2/MPa: 385
Elongation, δ ≥(％): 35.0
Reduction of area, ф ≥ (％): -
Hardness via heat treatment /HBW: - |
Applications:
XM-29 Austenitic STainless Steel UNS S24000 Stainless Steel Round Bar used most often in the bolts, nuts, screws, studs, threaded rods, other fasteners, etc.

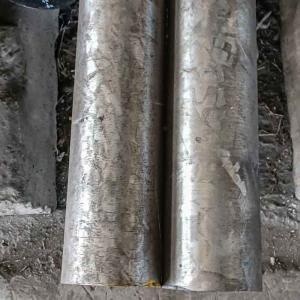

XM-29 Austenitic STainless Steel UNS S24000 Stainless Steel Round Bar
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of XM-29 Austenitic STainless Steel UNS S24000 Stainless Steel Round Bar and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one.
Q: Do you accept customization?
A: Yes. If you have special requirements for XM-29 Austenitic STainless Steel UNS S24000 Stainless Steel Round Bar We can make them for you.
Q: Can you accept trial orders?
A: If you want to place an order as the start of our cooperation, we can accept smaller quantities at the first time. Of course, after the start, we will have further and longer cooperation.
Q: How do get samples?
A: Free samples are available for your inspection and testing, FedEx/UPS/DHL accounts can be used for sampling, and the courier fee is borne by you.
Product Tags:
|
|
XM-29 Austenitic Stainless Steel Round Bar UNS S24000 Grades Images
|
