AMS 5664 Turbine Blade Steel UNS N07718 AMS 5664E Hollow Square Bar

Name: AMS 5664 Turbine Blade Steel UNS N07718 AMS 5664E Hollow Square Bar
Brand: PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL
Price: 1 USD

China AMS 5664 Turbine Blade Steel UNS N07718 AMS 5664E Hollow Square Bar wholesale

Brand Name : PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL

Model Number : AMS 5664E, UNS N07718, AMS 5664

Certification : SGS, TUV, BV, ISO, MTC

Place of Origin : China

MOQ : 1000kg

Price : Negotiations

Payment Terms : T/T

Supply Ability : 50000KGS/Month

Delivery Time : Ex-stock for delivery: 3-7 days Production lead time: 30-60 days

Packaging Details : Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement

Characteristic : Corrosion and Heat Resistant

Heat treatment condition : +NT,+AT, +P, etc.

Processing methods : Ground, Peeled, Milled, etc

Available Shapes : Flat bar, Length, Heavy, etc

Surface : Rrough Turned, Centreless Ground, etc.

Application : Vessels, Valves, Flanges...

Material Category : Nickel-Chromium Alloy

Contact Now

AMS 5664 Turbine Blade Steel UNS N07718 AMS 5664E Hollow Square Bar

Production Information

AMS 5664 is a nickel-chromium alloy, precipitation hardenable, with high creep rupture strength at elevated temperatures up to about 1300 °F (700 °C). AMS 5664 has a poor age hardening response, so annealing and welding will not spontaneously harden during heating and cooling. This alloy has excellent weldability compared to aluminum and titanium hardened nickel-based superalloys.

Size Range

Round bar / Wire rod (Diameter):	3.0mm to 1100mm
Square bar / Flat bar:	5.0mm to 900mm
Forging piece:	Stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
Heavy/middle plate via hot rolled:	T6 - 100mm X W10 - 1000mm X L1500-10000mm
Sheet steel via cold rolled:	T0.5 - 5.0mm X W6 - 1000mm X L1000 - 10000mm
Steel strip via cold rolled:	T0.1 - 5.0mm X W5 - 150mm X L (or in coil form)
Length	Fixed length or random length or based on the customer's special requirement.

Chemical Composition and standard

Grade	AMS 5661E
standard	SAE AMS 5661E-1995
Chemical Composition (weight%)	C (％): ≤ 0.08 Ti (%): 0.65 ~ 1.15 Mn (％): ≤ 0.35 Al (%): 0.20 ~ 0.80 Si (％): ≤ 0.35 B (%): ≤ 0.006 P (％)≤: 0.015 Nb (%): 4.75 ~ 5.50 S (％)≤: 0.015 Cu (%): ≤ 0.30 Cr (％): 17.0 ~ 21.0 Co (%): ≤ 1.00 Ni (％): 50.0 ~ 55.0 Ta (%): ≤ 0.05 Mo (%): 2.80 ~ 3.30 Fe (%): Remainder

AMS 5664 Turbine Blade Steel UNS N07718 AMS 5664E Hollow Square Bar

Mechanical Properties

AMS 5664 Stainless Steel Mechanical Properties

Tensile strength,Rm/MPa:	≥1241
Yield strength,Rp/MPa:	≥1304
Elongation/%:	≥12
Reduction of area, ψ/%:	≥15
Impact, KV /J:	--
Annealed hardness HBS:	≤341

Contact Us

Thank you for browsing, if you are interested in our products, please contact us, we will provide you with the best quotation

sales@ss-bars.com

AMS 5664 Turbine Blade Steel UNS N07718 AMS 5664E Hollow Square Bar

Product Tags:

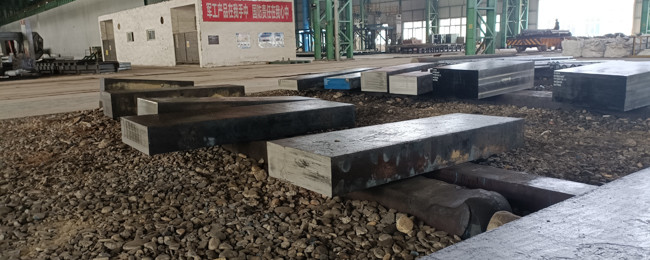

AMS 5664 Turbine Blade Steel UNS N07718 AMS 5664E Hollow Square Bar Images
