W-Nr 2.4856 NiCr22Mo9Nb Alloy Round Bar Inconel 625 N06625 Cold Rolled Strip
Product Information
W-Nr 2.4856 NiCr22Mo9Nb excellent resistance against corrosion in various corrosive substances (phosphoric/nitric/sulfuric/hydrochloric acid)
also resistant to chloride induced tensile corrosion resistant against alkalics and organic acids excellent resistance against fissures, crevice/intercrystalline corrosion
Size Range
Round bar / Wire rod (Diameter): 10.0 mm to 1000 mm
Square bar / Flat bar: 8.0 mm to 500 mm
Forging piece: Stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
Heavy/middle plate via hot rolled: T5 - 200 mm X W3 - 1000 mm X L1000-12000 mm
Sheet steel via cold rolled: T0.5 - 10 mm X W5 - 1000 mm X L300 - 1000 mm
Steel strip via cold rolled: T0.3 - 10.0 mm X W5 - 500 mm X L (or in coil form)
Length: Fixed length or random length or based on the customer's special requirement.
Chemical Composition and standard
| NiCr22Mo9Nb/2.4856 | JIS NCF625 | UNS N06625/Incoloy 625 |
| DIN 17744-2020 | JIS G 4901-2008 | ASTM B443-2000(R2014) |
|
C(％): ≤0.1
Si(％): ≤0.5
Mn(％): ≤0.5
P(％)≤: 0.02
S(％)≤: 0.015
Cr(％): 20.0~23.0
Ni(％): ≥58.0
Mo(%): 8.0~10.0 Cu(%): ≤0.5 Ti(%): ≤0.4 Co(%): ≤1.0 Al(%): ≤0.4 Nb+Ta: 3.15~3.45 Fe(%): ≤5.0 | C(％): ≤0.1
Si(％): ≤0.5
Mn(％): ≤0.5
P(％)≤: 0.015
S(％)≤: 0.015
Cr(％): 20.0~23.0
Ni(％): ≥58.0 Mo(%): 8.0~10.0 Cu(%): -- Ti(%): ≤0.4 Co(%): -- Al(%): ≤0.4 Nb+Ta: 3.15~3.45 Fe(%): ≤5.0 | C(％): ≤0.1
Si(％): ≤0.5
Mn(％): ≤0.5
P(％)≤: 0.015
S(％)≤: 0.015
Cr(％): 20.0~23.0
Ni(％): ≥58.0 Mo(%): 8.0~10.0 Cu(%): -- Ti(%): ≤0.4 Co(%): ≤1.0 Al(%): ≤0.4 Nb+Ta: 3.15~3.45 Fe(%): ≤5.0 |
W-Nr 2.4856 NiCr22Mo9Nb Mechanical Properties
Suitable size /mm: 2.5~100
Tensile strength, σb/≥ MPa: ≥830
Yield strength, σ0.2/≥ MPa: ≥415
Elongation, δ ≥(％): ≥30
Hardness | HBW ≤: -
Suitable size /mm: 100 ~ 250
Tensile strength, σb/≥ MPa: ≥760
Yield strength, σ0.2/≥ MPa: ≥345
Elongation, δ ≥(％): ≥30
Hardness | HBW ≤: -
Applications
W-Nr 2.4856 NiCr22Mo9Nb superalloy is commonly used in piping and exhaust systems, expansion joints, furnace equipment and valve components.
Contact us
If you are interested in our products or have any questions, please contact our team of engineers at
sales@ss-bars.com
Product Tags:
|
|

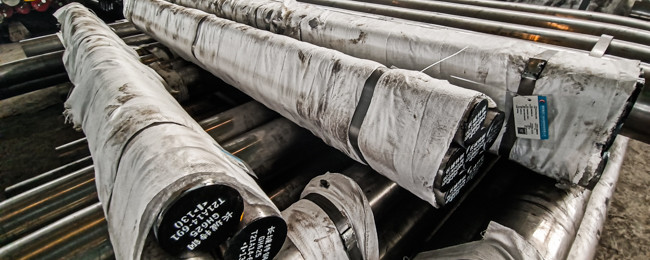

W-Nr 2.4856 NiCr22Mo9Nb Alloy Round Bar Inconel 625 N06625 Cold Rolled Strip Images
|
