X2CrTiNb18 W-Nr 1.4509 Stainless True Bar UNS S43940 Plates

Name: X2CrTiNb18 WNr 14509 Stainless True Bar UNS S43940 Plates
Brand: PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL
Price: 1 USD

China X2CrTiNb18 W-Nr 1.4509 Stainless True Bar UNS S43940 Plates wholesale

Brand Name : PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL

Model Number : AMS 5686

Certification : SGS, TUV, BV, ISO, MTC

Place of Origin : China

MOQ : 800kg

Price : Negotiations

Payment Terms : T/T

Supply Ability : 50000KGS/Month

Delivery Time : Ex-stock for delivery: 3-7 days Production lead time: 30-60 days

Packaging Details : Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement

Product Name : X2CrTiNb 18, 1.4509, UNS S43940, JIS SUS430LX

Characteristic : Corrosion and Resistant

Heat treatment condition : +QT, +AT, +P, etc

Processing methods : Machined, Milled, etc

Available Shapes : Round bar, Flat bar, Length, Heavy, middle plate via hot rolled etc

Surface : Rrough Turned, Grinded, etc

Contact Now

X2CrTiNb18 W-Nr 1.4509 Stainless True Bar UNS S43940 Plates

Product Information

1.4509 is a stainless steel material, also known as AISI 441 or EN 1.4509. It is a low-carbon duplex stainless steel with high corrosion resistance and wear resistance. The chemical composition of 1.4509 material includes chromium, molybdenum, copper, and titanium, with a high chromium content that can give it good corrosion resistance.

Size Range

Round bar / Wire rod (Diameter):1.0 mm to 1200 mm
Square bar / Flat bar: 5.0 mm to 1000 mm
Forging piece: Stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
Heavy/middle plate via hot rolled: T5.0 - 1500 mm X W5 - 1000 mm X L100-1000 mm
Sheet steel via cold rolled: T1.0 - 10 mm X W1 - 1000 mm X L100 - 800 mm
Steel strip via cold rolled: T2.0 - 10 mm X W1.0 - 1000 mm X L (or in coil form)
Length: Fixed length or random length or based on the customer's special requirement.

Chemical Composition and standard

X2CrTiNb 18/1.4509

UNS S43940

SUS 430LX

DIN EN 10088-1-2005

ISO 4995-2005

NF EN 10088-1-2005

BS EN 10088-1-2005

ASTM A 959-2004

JIS G 4304-2005

C(％): ≤0.03
Si(％): ≤1.00
Mn(％): ≤1.00
P(％)≤: 0.04
S(％)≤: 0.015

Cr(％): 17.5~18.5
Ni(％): -
Mo(%): -

Ti(％): 0.10~0.60

Nb(%): 3xC+0.30~1.00

C(％): ≤0.03
Si(％): ≤1.00
Mn(％): ≤1.00
P(％)≤: 0.04
S(％)≤: 0.015

Cr(％): 175~18.5
Ni(％): -
Mo(%): -

Ti(％): 0.10~0.60

Nb(%): ≥0.30+3xC

C(％): ≤0.03
Si(％): ≤0.75
Mn(％): ≤1.00
P(％)≤: 0.04
S(％)≤: 0.03

Cr(％): 16.0~19.0
Ni(％): ≤0.6
Mo(%): -

Ti(％): 0.10~1.00

X2CrTiNb18 W-Nr 1.4509 Stainless True Bar UNS S43940 Plates

Mechanical Properties

Tensile strength,Rm/MPa: 430~630
Yield strength,Rp/MPa: ≥230

Elongation, A/%: ≥30

Reduction of area, ψ/%: -

Hardness HRC: -

Applications

1.4509 stainless steel is commonly used in fields such as automotive exhaust systems, kitchenware, chemical processing equipment, and architectural decoration. Its characteristics include stability at high temperatures, excellent corrosion resistance, and low magnetic permeability. In addition, the 1.4509 material is also easy to process and weld, making it widely used in the manufacturing industry.

If you are interested in our products or have any questions, please contact our team of engineers at
sales@ss-bars.com

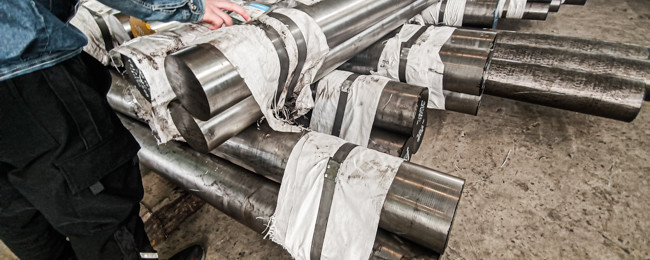

X2CrTiNb18 W-Nr 1.4509 Stainless True Bar UNS S43940 Plates Images
