AM-350 Turbine Blade Steel S35000 16Cr-4Ni-3Mo-N Bar A693 Gr.633 ASTM 633 AMS 5548 Round Bar
Description
Our company provides AM-350 A693 Gr.633 Turbine Blade Steel ASTM 633 AMS 5548 Round Bar UNS S35000 16Cr-4Ni-3Mo-N Precipitation hardening type Bar.
All of AM-350 A693 Gr.633 Turbine Blade Steel ASTM 633 AMS 5548 Round Bar UNS S35000 16Cr-4Ni-3Mo-N Precipitation hardening type Bar conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
- Material:Metal,Turbine Blade Steel,AM-350,A693 Gr.633,AMS 5548,ASTM 633,UNS S35000,16Cr-4Ni-3Mo-N.
- Shape:Turbine Blade Steel.
- Round bar / Wire rod (Diameter): 5.5mm to 800mm
- Square bar / Flat bar: 3mm to 800mm
Products Details
AM-350 A693 Gr.633 Turbine Blade Steel ASTM 633 AMS 5548 Round Bar UNS S35000 16Cr-4Ni-3Mo-N Precipitation hardening type Bar
Austenitic high-tensile superalloy & Precipitation hardening steel
The alloy is usually produced by AOD / VOD /VIM followed by electroslag refining (ESR) / VAR if necessary for special purpose.
| Chemical Composition (weight%): | Mechanical Properties Under Final Heat Treatment: |
C (％): 0.10 ~ 0.15
Si (％): ≤ 0.50
Mn (％): 0.50 ~ 1.25
P (％) ≤: 0.040
S (％) ≤: 0.030
Cr (％): 15.0 ~ 16.0
Ni (％): 4.00 ~ 5.00
Mo (％): 2.50 ~ 3.20
Nb + Ta (%): 0.15 ~ 0.50
N (%): - | Tensile strength, σb/≥ MPa: 1170
Yield strength, σ0.2/≥ MPa: 1070
Elonghation, δ ≥(％): 12.0
Reduction of area, ф ≥ (％): 25.0
Hardness | HB: HRC37 |
Applications:
Superalloy is widely used to produce the high temperature components for gas turbine in the field of aviation, naval vessels and industry, such as turbine blade, guide blade, turbine disc, high pressure compressor disc, combustor, and also production of energy conversion devices, such as aerospace craft, rocket motor, nuclear reactor, petrochemical equipments, coaly transforming and so on.
Equivalent Grade:
AM-350
A693 Gr.633
ASTM 633
AMS 5548
UNS S35000
16Cr-4Ni-3Mo-N
AM-350 A693 Gr.633 Turbine Blade Steel ASTM 633 AMS 5548 Round Bar UNS S35000 16Cr-4Ni-3Mo-N Precipitation hardening type Bar
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of raw materials and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging, we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order as the start of our cooperation, we can accept smaller quantities at the first time. Of course, after the start, we will have further and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing, DHL/FedEx/UPS accounts can be used for sampling, and the courier fee is borne by you.
|
|

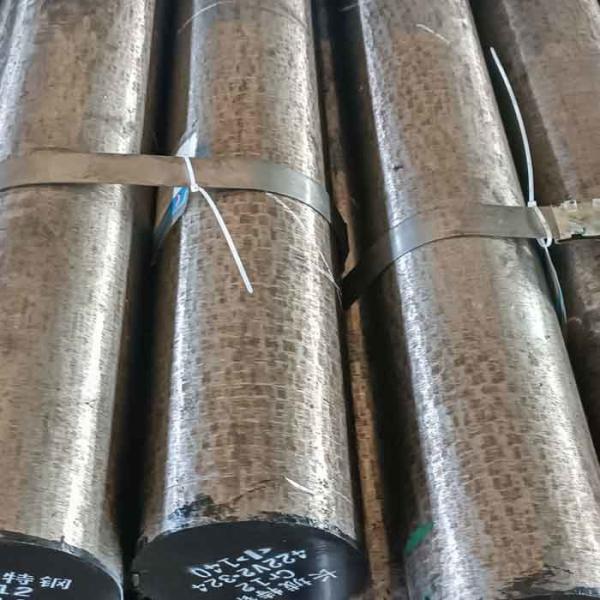

AM-350 Turbine Blade Steel S35000 16Cr-4Ni-3Mo-N Bar A693 Gr.633 ASTM 633 AMS 5548 Round Bar Images
|
